Name: Ductile iron butterfly valve 1135 Lug EN-GJS-400-15 disc/EPDM seat
SKU: 8998
Price: 33.328571428571 EUR
Availability: InStock

Ductile iron butterfly valve 1135 Lug EN-GJS-400-15 disc/EPDM seat

€33.33 (excl. btw)

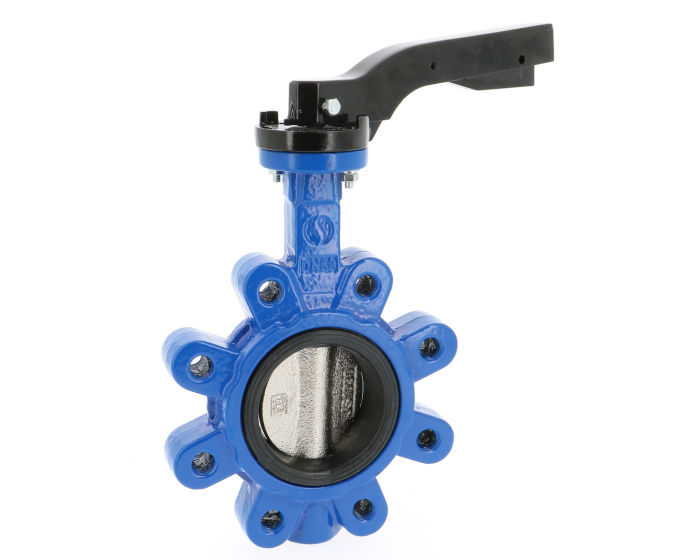

The 1135 series butterfly valve is a lug-type valve with a ductile iron body, ductile iron disc and vulcanised EPDM seat. It can be used for isolating or regulating cold or hot water networks, non-corrosive fluids.

In stock Subject prior to sales
Categories : Vlinderkleppen

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Other	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Concentric ductile iron butterfly valves Our range of concentric ductile iron butterfly valves contain both wafer and lug types that can be used between flanges PN10/16, ANSI 150 up to DN600, and JIS 10K up to DN300. The body of our butterfly valves is made from epoxy-coated GGG40 ductile iron, and our soft seats and seals are made with vulcanized EPDM or vulcanized NBR. The vulcanization of the seat increases mechanical strength, which helps avoid creeping and wrenching. EPDM can withstand temperatures from 1 0 ° C up to + 110 ° C (with a transient peak at + 130 ° C), whereas our vulcanized NBR seats can withstand + 80 ° C. Our valves can tolerate pressures of 16 bar up to DN300, and 10 bar above. Our valves are fitted with nickel-plated ductile iron or stainless steel discs that are held in place thanks to shank grooves, which help avoid mechanical slack during use. The one-piece axis is kept airtight by two levels of PTFE and NBR seals. The ISO 5211 mounting pad allows easy mounting of pneumatic or electric actuators, or manual gearboxes. These valves can be used with a wide variety of fluids, including hot and cold water, demineralized water, alcohol, lime milk, mercury, alkaline solutions, sodium hydroxide. They are also suitable for gas such as air, nitrogen, etc.

Specification	Value
DN inches NPS	1''1/2
Option certificate 3.1	Yes
DN metric	40/49
Construction standard	API 609
CE risk category	III Module H
Type of paint	Epoxy
Paint coating thickness (µm)	80.00
EN face-to-face standard	EN 558 Series 20
DIN face-to-face standard	DIN 3202 Part.3 Series K1
ISO face-to-face standard	ISO 5752 Series 20
Tightness test standard	API 598
Type of seat	Vulcanized
Notch plate	Yes
Opening device	Handle
Application	Air conditioning / Heating
Shaft/stem matérial	Stainless steel AISI 416
Lockable	Yes
Square, star (mm)	Square 9 mm
Torque (Nm)	12
DN	DN40 - 1''1/2
Face to Face (mm)	33.0
Fluid	Cold water
Kv (m³/h)	78.0
Seat	EPDM
Body material	Cast iron
Disc material	Cast iron EN GJS-400-15
ISO pad 5211	F05
PS (bar)	16
Connections	Between flanges PN10/16
TS max (°C)	110
TS min (°C)	-15
Butterfly valve design	Concentric
Wafer/lug	Lug
Through shaft	Yes
Warranty period	2 years
CE	Yes
Handle material	Aluminium
